Asp.Net WebApi 接入 Identity Server4 全记录

发表于 更新于 Disqus： 0 Comments

Asp.Net WebApi 接入 Identity Server4 全记录

当前环境

  1. Net Core 2.2+ // 建议使用 Net Core 3.0

  2. Asp.Net Framework 4.6.2+

  3. Visual Studio 2019// 如果使用 Net Core 3.0，你可能需要预览版

新增空的解决方案

  1. 打开命令行。执行 dotnet new sln -n SsoTest 建立空白解决方案。

新增 Identity Server4 服务端【本文不讨论服务端配置问题】

新增项目并添加到解决方案里

  1. 打开命令行或者 powershell

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    # 新增IdentityServer4模板
    dotnet new -i IdentityServer4.Templates
    # 新建项目
    dotnet new is4empty -n IdentityServer
    # 添加到解决方案
    dotnet sln add .\IdentityServer\IdentityServer.csproj
    # 进入项目目录
    cd IdentityServer
    # 添加UI
    dotnet new is4ui

  2. 修改 Config.cs 文件

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    using IdentityServer4;
    using IdentityServer4.Models;
    using IdentityServer4.Test;
    using System.Collections.Generic;
    using System.Security.Claims;

    namespace IdentityServer
    {
        public static class Config
        {
            public static IEnumerable<IdentityResource> GetIdentityResources()
            {
                return new IdentityResource[]
                {
                    new IdentityResources.OpenId(),
                    new IdentityResources.Profile(),
                    new IdentityResources.Email(),
                    new IdentityResources.Phone(),
                };
            }
            public static List<TestUser> GetUsers()
            {
                return new List<TestUser> {
                    new TestUser {
                        SubjectId = "1",
                        Username = "alice",
                        Password = "password",
                        Claims = new []
                        {
                            new Claim("name", "Alice"),
                            new Claim("website", "https://alice.com")
                        }
                    },
                    new TestUser {
                        SubjectId = "2",
                        Username = "bob",
                        Password = "password",
                        Claims = new []
                        {
                            new Claim("name", "Bob"),
                            new Claim("website", "https://bob.com")
                        }
                    }
                };
            }
            public static IEnumerable<ApiResource> GetApis()
            {
                return new ApiResource[] {
                    new ApiResource ("api1", "My API")
                };
            }

            public static IEnumerable<Client> GetClients()
            {
                var secret = "49C1A7E1-0C79-4A89-A3D6-A37998FB86B0".Sha256();
                return new Client[] {
                    new Client {
                        ClientId = "mvc",
                        ClientName = "MVC Client",
                        ClientSecrets = {
                            new Secret (secret)
                        },
                        AllowedGrantTypes = GrantTypes.HybridAndClientCredentials,
                        // where to redirect to after login
                        RedirectUris = { "http://localhost:5001/signin-oidc" },
                        // where to redirect to after logout
                        PostLogoutRedirectUris = { "http://localhost:5001/signout-callback-oidc" },
                        AllowedScopes = new List<string> {
                            IdentityServerConstants.StandardScopes.OpenId,
                            IdentityServerConstants.StandardScopes.Email,
                            IdentityServerConstants.StandardScopes.Phone,
                            IdentityServerConstants.StandardScopes.Profile,
                            "api1"
                        }
                    },,
                new Client
                {
                    ClientName = "vuejs",
                    ClientId = "vuejsclient",
                    AllowedGrantTypes=GrantTypes.Implicit,
                    AllowAccessTokensViaBrowser=true,
                    AccessTokenType = AccessTokenType.Reference,
                    UpdateAccessTokenClaimsOnRefresh = true,
                    AllowOfflineAccess = true,
                    RequireConsent = false,
                    //AccessTokenLifetime = 50,
                    RedirectUris = new List<string>()
                    {
                        "http://localhost:5002/static/callback.html",
                        "http://localhost:5002/static/silent-renew.html"
                    },
                    PostLogoutRedirectUris = {
                        "http://localhost:5002/index.html"
                    },
                    AllowedCorsOrigins = {
                        "http://localhost:5002"
                    },
                    AllowedScopes =
                    {
                        IdentityServerConstants.StandardScopes.OpenId,
                        IdentityServerConstants.StandardScopes.Profile,
                        IdentityServerConstants.StandardScopes.Address,
                        "roles",
                        "identityserver4api",
                        "country",
                        "subscriptionlevel"
                    },
                    ClientSecrets =
                    {
                        new Secret("secret".Sha256())
                    }
                }
                };
            }
        }
    }

  3. 修改 Startup.cs, 取消注释

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    public IHostingEnvironment Environment { get; }

    public Startup(IHostingEnvironment environment)
    {
        Environment = environment;
    }

    public void ConfigureServices(IServiceCollection services)
    {
        // uncomment, if you want to add an MVC-based UI
        services.AddMvc().SetCompatibilityVersion(Microsoft.AspNetCore.Mvc.CompatibilityVersion.Version_2_1);

        var builder = services.AddIdentityServer()
            .AddInMemoryIdentityResources(Config.GetIdentityResources())
            .AddInMemoryApiResources(Config.GetApis())
            .AddInMemoryClients(Config.GetClients())
            .AddTestUsers(Config.GetUsers());

        if (Environment.IsDevelopment())
        {
            builder.AddDeveloperSigningCredential();
        }
        else
        {
            throw new Exception("need to configure key material");
        }
    }

    public void Configure(IApplicationBuilder app)
    {
        if (Environment.IsDevelopment())
        {
            app.UseDeveloperExceptionPage();
        }

        // uncomment if you want to support static files
        app.UseStaticFiles();

        app.UseIdentityServer();
        // uncomment, if you want to add an MVC-based UI
        app.UseMvcWithDefaultRoute();
    }

  4. 新开一个命令行或者 powershell 窗口，运行服务端

    1
    2
    3
    4
    5
    6

    # 还原nuget,编译
    dotnet restore
    dotnet build
    # 运行
    dotnet run

新增一个空的 WebApi 项目

  1. 打开解决方案 SsoTest.sln

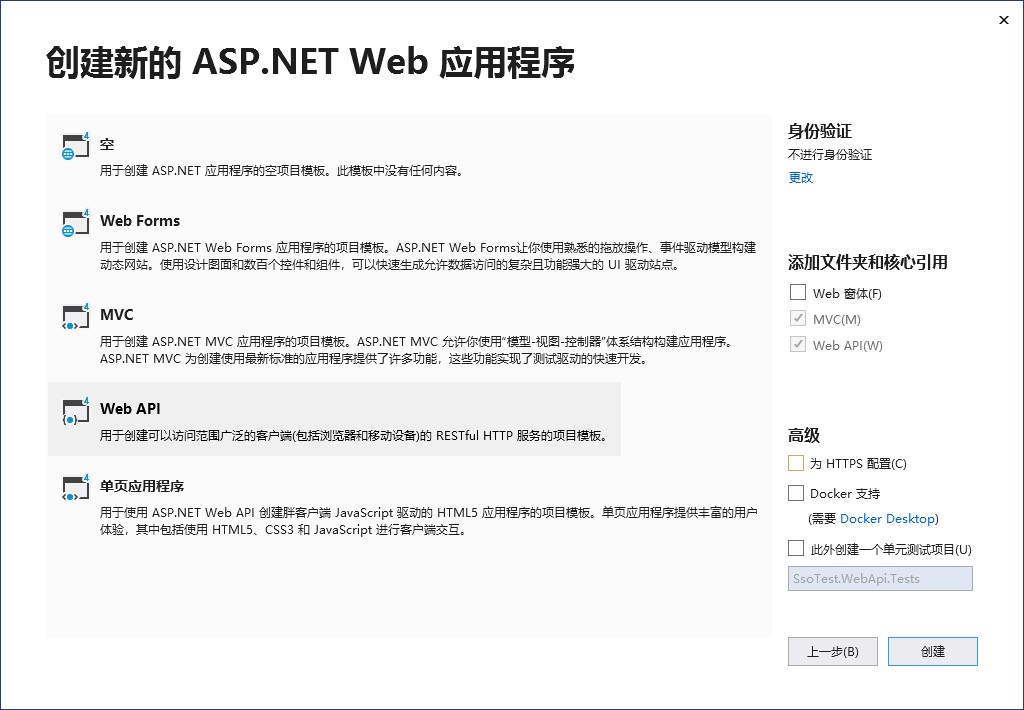

  2. 在解决方案上右键 -> 添加 -> 新建项目，创建 WebApi 项目，名为 SSOTest.WebApi



配置 WebApi 接入 Identity Server

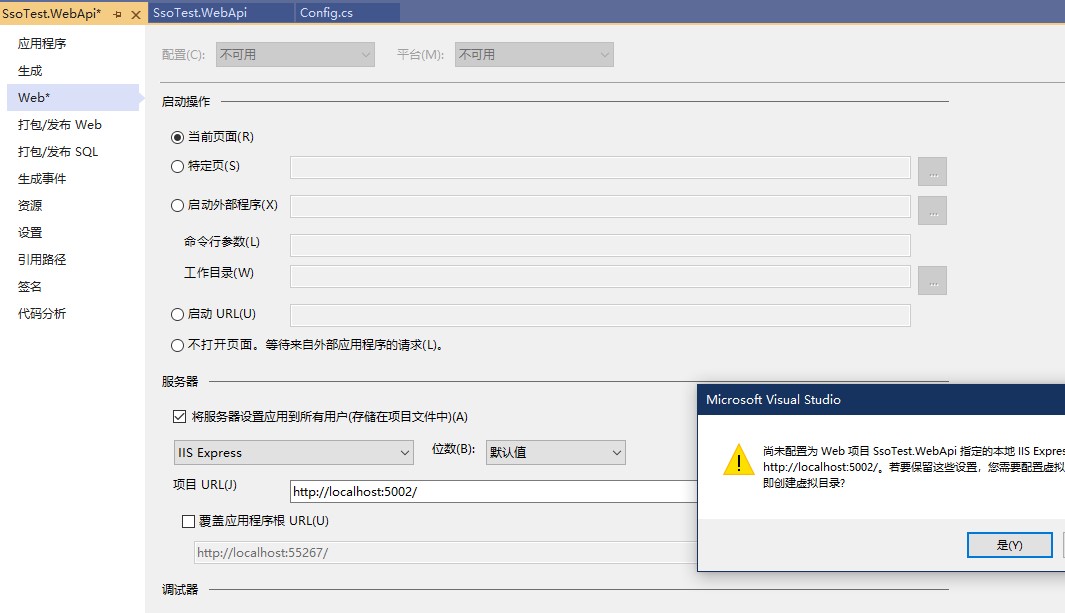

  1. 修改项目属性，指定 web 端口为 5002

  2. 打开包控制台，安装 nuget 包

    1
    2
    3
    Install-Package IdentityModel -Version 3.10.10
    Install-Package IdentityServer3.Contrib.AccessTokenValidation
    Install-Package Microsoft.Owin.Host.SystemWeb

  3. 新增 OWIN 的 Startup.cs 文件

  4. 修改为 Startup.cs 文件.

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    using System;
    using System.Net.Http;
    using System.Security.Claims;
    using System.Web.Helpers;
    using IdentityModel;
    using IdentityModel.Client;
    using Microsoft.Owin;
    using Microsoft.Owin.Security;
    using Microsoft.Owin.Security.Cookies;
    using Microsoft.Owin.Security.OpenIdConnect;
    using Owin;

    [assembly: OwinStartup(typeof(SSOTest.Client.Startup))]

    namespace SSOTest.Client
    {
        public partial class Startup
        {
            public void Configuration(IAppBuilder app)
            {
                // 有关如何配置应用程序的详细信息，请访问 https://go.microsoft.com/fwlink/?LinkID=316888
                ConfigureAuth(app);
            }

            private void ConfigureAuth(IAppBuilder app)
            {
                var secret = "49C1A7E1-0C79-4A89-A3D6-A37998FB86B0".ToSha256();
                AntiForgeryConfig.UniqueClaimTypeIdentifier = "sub";
                app.UseIdentityServerBearerTokenAuthentication(new IdentityServerBearerTokenAuthenticationOptions
                {
                    Authority = "http://localhost:5000",
                    RequiredScopes = new string[] { "webapi" },
                    ClientId = "Test",
                    ClientSecret = secret,
                    DelayLoadMetadata = true
                });
            }
        }
    }

  5. 打开 Controllers/ValuesController.cs
    在 Get 这个 Action 上加特性 [Authorize]

  6. 运行 Client 项目，访问 http://localhost:5002/Api/Values

源码下载

on the github
